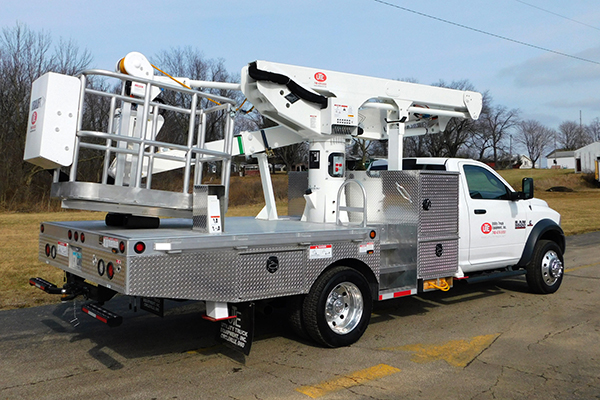

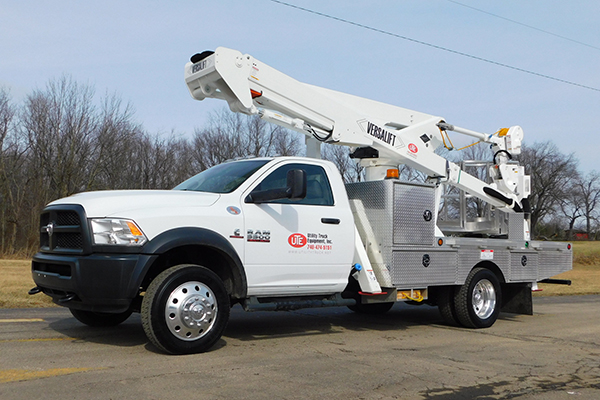

VST 47MHN Sign Shark

Highly Versatile & Adaptable Lift Truck Specifically Designed for the Sign Industry

VST-47MHN Non-insulated Articulated/Telescopic Material Handling
This Versalift platform lift is the perfect solution for those in need of a
highly versatile & adaptable sign truck. The Versalift 47-MHN is specifically designed for the sign industry. Its adaptable design allows a multitude of box options to suit any need you might have, and having a non-insulated boom makes it much more affordable as well.

PRODUCT OVERVIEW
Working Height 51.83 ft (15.54 m)
Height to Bottom of Platform 46.83 ft (14.02 m)
Horizontal Reach 30.75 ft (9.14 m)
Stowed Travel Height 11 ft (3.35 m)
Platform Capacity 400 lbs (181.44 kg)
Insulated or Non-insulated Non-insulated
Material Handling Yes
HYDRAULIC SYSTEM
Machine Controls Full Hydraulic
Operating Pressure 3000 psi (210.92 kg/cm²)
Flow Rate 6 gpm (22.71 lpm)
Filtration 10 micron return | 100 mesh suction
System Type Open Center
Power Source PTO Pump
BOOM
Lower Boom Articulation 0 to +84°
Inner/Outer Boom Articulation -25° to +85°
Inner Boom Extension 103 in (2.62 m)
Lower Boom Lift Eye Capacity 1000 lbs (453.59 m)
Boom Rotation Continuous
VEHICLE REQUIREMENTS
GVWR (minimum) 19500 lbs (7937.83 kg)
Cab to Axle (minimum) 84 in (2.13 m)
MATERIAL HANDLING OPTIONS
Jib & Winch Capacity 1000 lbs (453.59 kg)

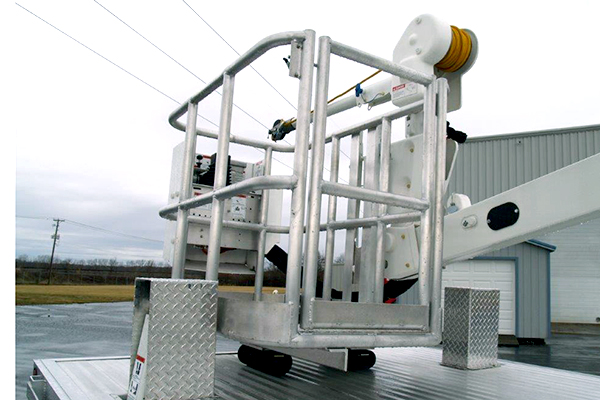

Work Platform

  • 40”x60” aluminum construction work platform
  • Walk through door
  • 1,000lbs capacity boom tip mounted jib winch
  • Several platform sizes are available for this model

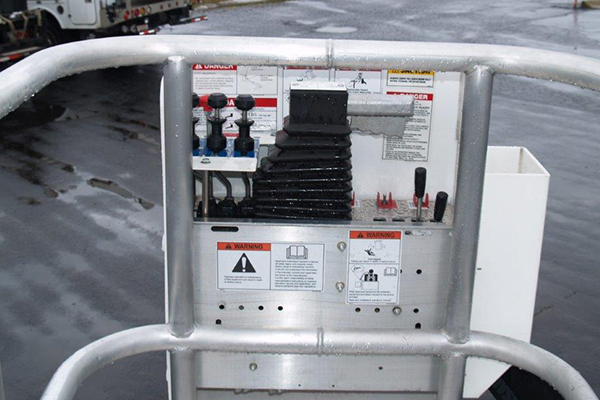

Control Panel

  • Covered upper control panel
  • Single stick control
  • Emergency pump, 2-speed engine control, platform jib winch control
  • Hydraulic tool circuit at platform
Utility Truck Equipment Sign Shark

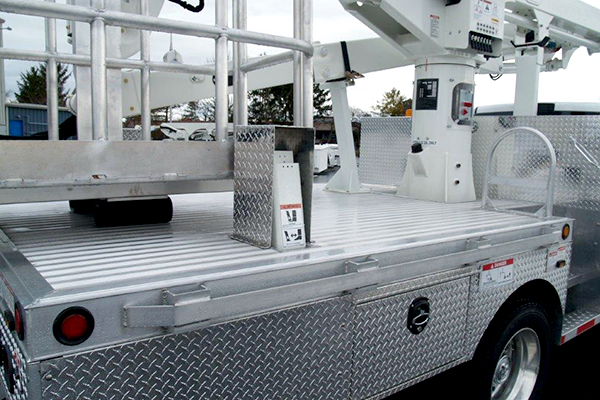

Flat Bed

  • Full length aluminum flat bed with aluminum crossmembers
  • Body side tie down rails,
  • LED full lighting package.

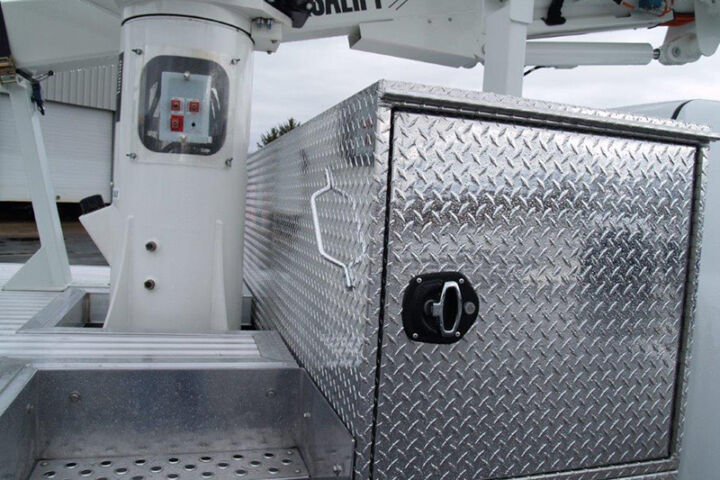

Cross body lamp box

SEVERAL TOOL BOX OPTIONS AVAILABLE, INCLUDING...

  • Top bed storage compartments (1) 88” on diver side and (1) 60” on passenger side.
  • 8”x18” under body tool boxes.

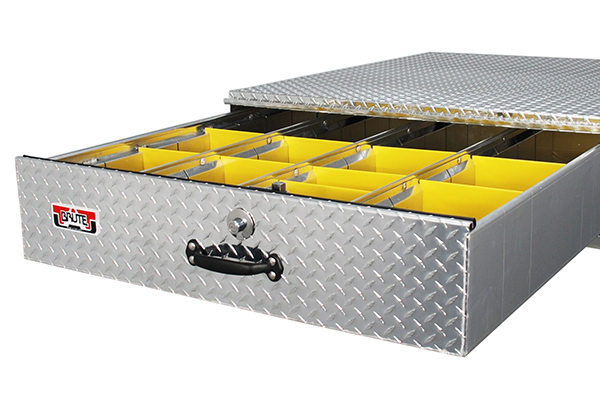

  • Pull out drawers available for mounting under cross box.
Sign Shark Box

We assist you in designing and building the custom equipment you need for your particular wants and needs, including custom paint and graphics packages.
